Fortune Hardware Co., LTD

Products > Metal Fasteners > Screw > Stainless Steel Hexagon Socket Head Self Tapping Screws
Product name : Stainless Steel Hexagon Socket Head Self Tapping Screws
Item : MTSCRHCSST
material : Stainless Steel
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:
Standard:  None.
Material:
SUS301,304,18/8,0Cr18Ni9,X5CrNi1810,X10Cr13,410S21,if you need to use other stainless steel, please let us know.
Heat Treatment: None for normal, If you have special hardness requirement, please let us know.
Surface Hardness:220HV is Normal, 750HV max after Quench with SUS410
Finish:None.
HeadHexagon Socket Head
Tensile strength:700N/mm2
Thread Direction:Normal is right hand/dextrorotation, if you want left hand, please let us know.
Refer to document as below:

Stainless Steel Hexagon Socket Head Self Tapping Screws.pdf

  Stainless Steel Hexagon Socket Head Self Tapping Screw have a pointed end and widely spaced threads. They're self-starting in thin sheet metal, but in thicker materials a drilled hole is recommended.

"Stainless Steel" - With the addition of 12% chromium to iron, stainless steel is formed. The chromium protects the iron against most corrosion or red colored rust; thus the term "stainless steel". The ability of stainless to form a thin layer of protection on its outside surface, called a "passive film", is its most important characteristic in preventing corrosion.

"18-8" - 300 series stainless steel having approximately (not exactly) 18% chromium and 8% nickel. The term "18-8" is used interchangeably to characterize fasteners made of 302,302HQ,303,304,384, XM7, and other variables of these grades with close chemical compositions. There is little overall difference in corrosion resistance among the 18-8 types, but slight differences in chemical composition do make certain grades more resistant than others against particular chemicals or atmospheres.

Austentic - Refers to 300 series stainless, the most popular of the stainless alloys accounting for 85%-90% of stainless fasteners sold Named for sir Robert Williams Austen, an English metallurgist, austentic stainless is a crystal structure formed by heating steel, chromium, and nickel to a high temperature where it forms the characteristics of 300 series stainless steel.

 You can refer to below chart/list of Screw head/Thread ending

Thread ending:

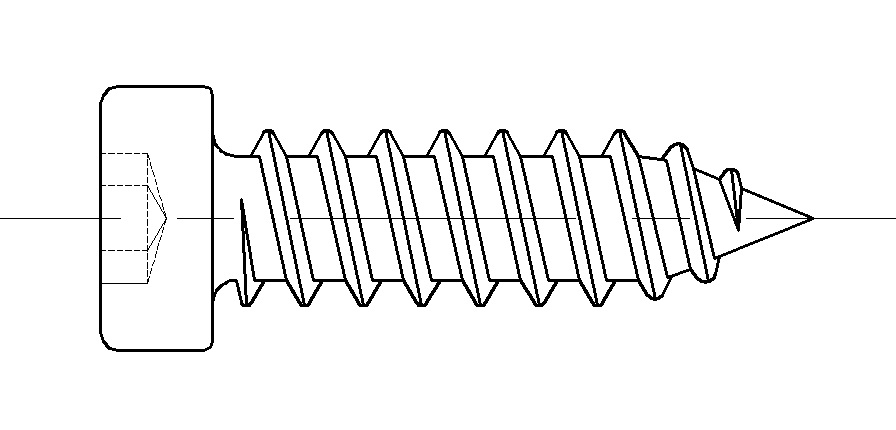

And below is the common drawing for this kind:
